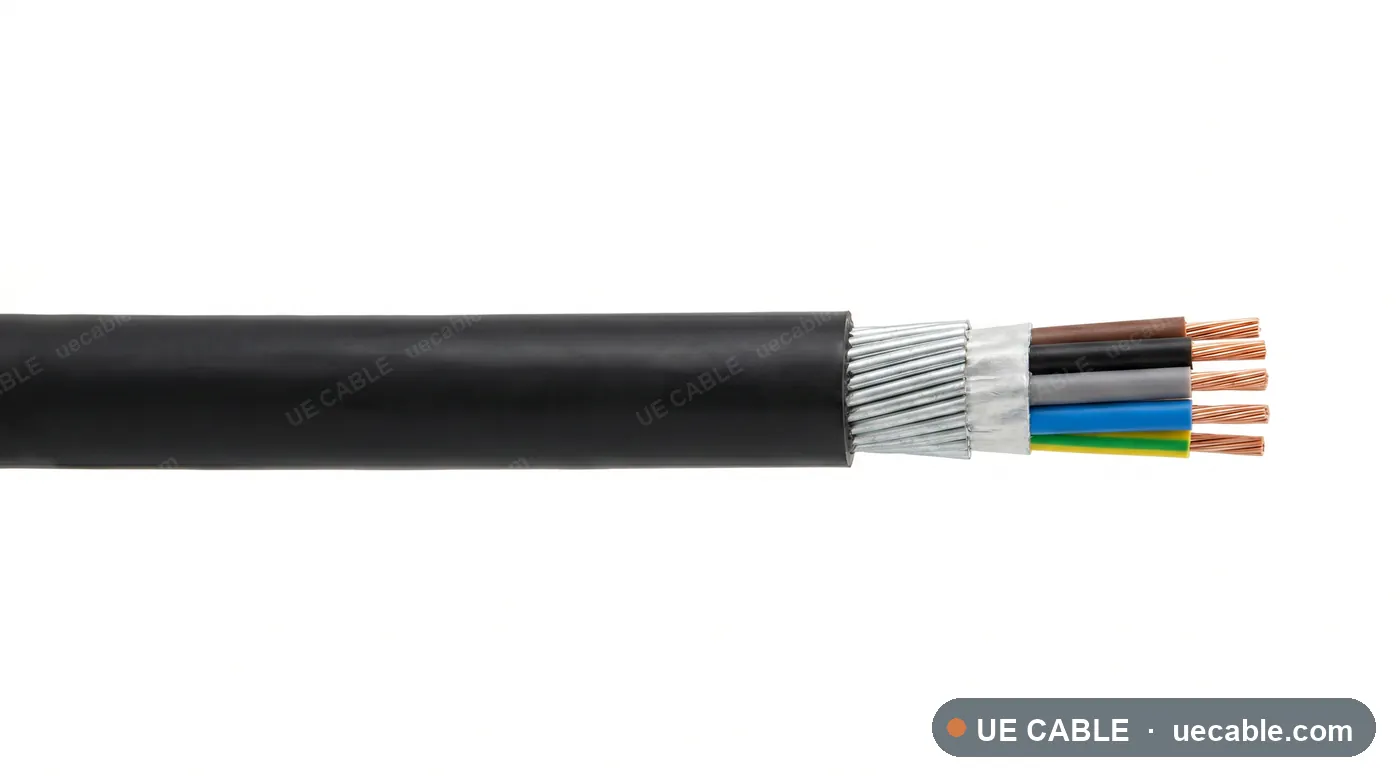

IEC 60502-2 Three Core XLPE SWA PVC MV Cable cable construction reference

Three core armoured MV cable

IEC 60502-2 Three Core XLPE SWA PVC MV Cable

IEC 60502-2 Three Core XLPE SWA PVC MV Cable is a specific medium-voltage cable construction for utility feeders, industrial distribution, direct burial applications, using copper or aluminium conductor, xlpe insulation, copper tape or copper wire screen, steel wire armour for three-core cable and pvc outer sheath.

Standard
IEC 60502-2
Voltage class
3.6/6 kV to 18/30 kV and customer-specified MV classes
Conductor
Copper or aluminium conductor
Insulation / jacket
PVC
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

IEC 60502-2 Three Core XLPE SWA PVC MV Cable is a specific medium-voltage cable construction for utility feeders, industrial distribution, direct burial applications, using copper or aluminium conductor, xlpe insulation, copper tape or copper wire screen, steel wire armour for three-core cable and pvc outer sheath.

  • Utility feeders
  • Industrial distribution
  • Direct burial
  • Substation connections

Cable Construction

  • Copper or aluminium conductor
  • Conductor screen
  • XLPE insulation
  • Insulation screen
  • Copper tape or copper wire screen
  • Optional longitudinal or radial water blocking
  • Steel wire armour for three-core cable
  • PVC outer sheath

Specifications

Select a cable size.

Each row below is a complete specification sheet — 50 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Copper conductor - Three core

Each row is an exact specification reference for quotation. Shared insulation, screen, water blocking and sheath data are listed above.

Cable referenceVoltage classCross-sectionMax DC resistance at 20 °CMetallic screenOD guide
IEC 60502-2 three core XLPE/SWA/PVC 3.6/6 kV Three core Copper 25 mm² PVC3.6/6 kV25 mm²0.727 Ω/km16 mm² copper wire screen55 mm
IEC 60502-2 three core XLPE/SWA/PVC 3.6/6 kV Three core Copper 50 mm² PVC3.6/6 kV50 mm²0.387 Ω/km16 mm² copper wire screen58 mm
IEC 60502-2 three core XLPE/SWA/PVC 3.6/6 kV Three core Copper 95 mm² PVC3.6/6 kV95 mm²0.193 Ω/km16 mm² copper wire screen63 mm
IEC 60502-2 three core XLPE/SWA/PVC 3.6/6 kV Three core Copper 150 mm² PVC3.6/6 kV150 mm²0.124 Ω/km16 mm² copper wire screen67 mm
IEC 60502-2 three core XLPE/SWA/PVC 3.6/6 kV Three core Copper 240 mm² PVC3.6/6 kV240 mm²0.0754 Ω/km25 mm² copper wire screen72 mm
IEC 60502-2 three core XLPE/SWA/PVC 6/10 kV Three core Copper 35 mm² PVC6/10 kV35 mm²0.524 Ω/km16 mm² copper wire screen56 mm
IEC 60502-2 three core XLPE/SWA/PVC 6/10 kV Three core Copper 70 mm² PVC6/10 kV70 mm²0.268 Ω/km16 mm² copper wire screen60 mm
IEC 60502-2 three core XLPE/SWA/PVC 6/10 kV Three core Copper 120 mm² PVC6/10 kV120 mm²0.153 Ω/km16 mm² copper wire screen65 mm
IEC 60502-2 three core XLPE/SWA/PVC 6/10 kV Three core Copper 185 mm² PVC6/10 kV185 mm²0.0991 Ω/km25 mm² copper wire screen69 mm
IEC 60502-2 three core XLPE/SWA/PVC 6/10 kV Three core Copper 300 mm² PVC6/10 kV300 mm²0.0601 Ω/km25 mm² copper wire screen75 mm
IEC 60502-2 three core XLPE/SWA/PVC 8.7/15 kV Three core Copper 50 mm² PVC8.7/15 kV50 mm²0.387 Ω/km16 mm² copper wire screen58 mm
IEC 60502-2 three core XLPE/SWA/PVC 8.7/15 kV Three core Copper 95 mm² PVC8.7/15 kV95 mm²0.193 Ω/km16 mm² copper wire screen63 mm
IEC 60502-2 three core XLPE/SWA/PVC 8.7/15 kV Three core Copper 150 mm² PVC8.7/15 kV150 mm²0.124 Ω/km16 mm² copper wire screen67 mm
IEC 60502-2 three core XLPE/SWA/PVC 8.7/15 kV Three core Copper 240 mm² PVC8.7/15 kV240 mm²0.0754 Ω/km25 mm² copper wire screen72 mm
IEC 60502-2 three core XLPE/SWA/PVC 8.7/15 kV Three core Copper 400 mm² PVC8.7/15 kV400 mm²0.0470 Ω/km35 mm² copper wire screen80 mm
IEC 60502-2 three core XLPE/SWA/PVC 12/20 kV Three core Copper 50 mm² PVC12/20 kV50 mm²0.387 Ω/km16 mm² copper wire screen61 mm
IEC 60502-2 three core XLPE/SWA/PVC 12/20 kV Three core Copper 95 mm² PVC12/20 kV95 mm²0.193 Ω/km16 mm² copper wire screen66 mm
IEC 60502-2 three core XLPE/SWA/PVC 12/20 kV Three core Copper 150 mm² PVC12/20 kV150 mm²0.124 Ω/km16 mm² copper wire screen70 mm
IEC 60502-2 three core XLPE/SWA/PVC 12/20 kV Three core Copper 240 mm² PVC12/20 kV240 mm²0.0754 Ω/km25 mm² copper wire screen75 mm
IEC 60502-2 three core XLPE/SWA/PVC 12/20 kV Three core Copper 400 mm² PVC12/20 kV400 mm²0.0470 Ω/km35 mm² copper wire screen83 mm
IEC 60502-2 three core XLPE/SWA/PVC 18/30 kV Three core Copper 70 mm² PVC18/30 kV70 mm²0.268 Ω/km16 mm² copper wire screen66 mm
IEC 60502-2 three core XLPE/SWA/PVC 18/30 kV Three core Copper 120 mm² PVC18/30 kV120 mm²0.153 Ω/km16 mm² copper wire screen71 mm
IEC 60502-2 three core XLPE/SWA/PVC 18/30 kV Three core Copper 185 mm² PVC18/30 kV185 mm²0.0991 Ω/km25 mm² copper wire screen75 mm
IEC 60502-2 three core XLPE/SWA/PVC 18/30 kV Three core Copper 300 mm² PVC18/30 kV300 mm²0.0601 Ω/km25 mm² copper wire screen81 mm
IEC 60502-2 three core XLPE/SWA/PVC 18/30 kV Three core Copper 400 mm² PVC18/30 kV400 mm²0.0470 Ω/km35 mm² copper wire screen86 mm

Aluminium conductor - Three core

Each row is an exact specification reference for quotation. Shared insulation, screen, water blocking and sheath data are listed above.

Cable referenceVoltage classCross-sectionMax DC resistance at 20 °CMetallic screenOD guide
IEC 60502-2 three core XLPE/SWA/PVC 3.6/6 kV Three core Aluminium 25 mm² PVC3.6/6 kV25 mm²1.20 Ω/km16 mm² copper wire screen55 mm
IEC 60502-2 three core XLPE/SWA/PVC 3.6/6 kV Three core Aluminium 50 mm² PVC3.6/6 kV50 mm²0.641 Ω/km16 mm² copper wire screen58 mm
IEC 60502-2 three core XLPE/SWA/PVC 3.6/6 kV Three core Aluminium 95 mm² PVC3.6/6 kV95 mm²0.320 Ω/km16 mm² copper wire screen63 mm
IEC 60502-2 three core XLPE/SWA/PVC 3.6/6 kV Three core Aluminium 150 mm² PVC3.6/6 kV150 mm²0.206 Ω/km16 mm² copper wire screen67 mm
IEC 60502-2 three core XLPE/SWA/PVC 3.6/6 kV Three core Aluminium 240 mm² PVC3.6/6 kV240 mm²0.125 Ω/km25 mm² copper wire screen72 mm
IEC 60502-2 three core XLPE/SWA/PVC 6/10 kV Three core Aluminium 35 mm² PVC6/10 kV35 mm²0.868 Ω/km16 mm² copper wire screen56 mm
IEC 60502-2 three core XLPE/SWA/PVC 6/10 kV Three core Aluminium 70 mm² PVC6/10 kV70 mm²0.443 Ω/km16 mm² copper wire screen60 mm
IEC 60502-2 three core XLPE/SWA/PVC 6/10 kV Three core Aluminium 120 mm² PVC6/10 kV120 mm²0.253 Ω/km16 mm² copper wire screen65 mm
IEC 60502-2 three core XLPE/SWA/PVC 6/10 kV Three core Aluminium 185 mm² PVC6/10 kV185 mm²0.164 Ω/km25 mm² copper wire screen69 mm
IEC 60502-2 three core XLPE/SWA/PVC 6/10 kV Three core Aluminium 300 mm² PVC6/10 kV300 mm²0.100 Ω/km25 mm² copper wire screen75 mm
IEC 60502-2 three core XLPE/SWA/PVC 8.7/15 kV Three core Aluminium 50 mm² PVC8.7/15 kV50 mm²0.641 Ω/km16 mm² copper wire screen58 mm
IEC 60502-2 three core XLPE/SWA/PVC 8.7/15 kV Three core Aluminium 95 mm² PVC8.7/15 kV95 mm²0.320 Ω/km16 mm² copper wire screen63 mm
IEC 60502-2 three core XLPE/SWA/PVC 8.7/15 kV Three core Aluminium 150 mm² PVC8.7/15 kV150 mm²0.206 Ω/km16 mm² copper wire screen67 mm
IEC 60502-2 three core XLPE/SWA/PVC 8.7/15 kV Three core Aluminium 240 mm² PVC8.7/15 kV240 mm²0.125 Ω/km25 mm² copper wire screen72 mm
IEC 60502-2 three core XLPE/SWA/PVC 8.7/15 kV Three core Aluminium 400 mm² PVC8.7/15 kV400 mm²0.0778 Ω/km35 mm² copper wire screen80 mm
IEC 60502-2 three core XLPE/SWA/PVC 12/20 kV Three core Aluminium 50 mm² PVC12/20 kV50 mm²0.641 Ω/km16 mm² copper wire screen61 mm
IEC 60502-2 three core XLPE/SWA/PVC 12/20 kV Three core Aluminium 95 mm² PVC12/20 kV95 mm²0.320 Ω/km16 mm² copper wire screen66 mm
IEC 60502-2 three core XLPE/SWA/PVC 12/20 kV Three core Aluminium 150 mm² PVC12/20 kV150 mm²0.206 Ω/km16 mm² copper wire screen70 mm
IEC 60502-2 three core XLPE/SWA/PVC 12/20 kV Three core Aluminium 240 mm² PVC12/20 kV240 mm²0.125 Ω/km25 mm² copper wire screen75 mm
IEC 60502-2 three core XLPE/SWA/PVC 12/20 kV Three core Aluminium 400 mm² PVC12/20 kV400 mm²0.0778 Ω/km35 mm² copper wire screen83 mm
IEC 60502-2 three core XLPE/SWA/PVC 18/30 kV Three core Aluminium 70 mm² PVC18/30 kV70 mm²0.443 Ω/km16 mm² copper wire screen66 mm
IEC 60502-2 three core XLPE/SWA/PVC 18/30 kV Three core Aluminium 120 mm² PVC18/30 kV120 mm²0.253 Ω/km16 mm² copper wire screen71 mm
IEC 60502-2 three core XLPE/SWA/PVC 18/30 kV Three core Aluminium 185 mm² PVC18/30 kV185 mm²0.164 Ω/km25 mm² copper wire screen75 mm
IEC 60502-2 three core XLPE/SWA/PVC 18/30 kV Three core Aluminium 300 mm² PVC18/30 kV300 mm²0.100 Ω/km25 mm² copper wire screen81 mm
IEC 60502-2 three core XLPE/SWA/PVC 18/30 kV Three core Aluminium 400 mm² PVC18/30 kV400 mm²0.0778 Ω/km35 mm² copper wire screen86 mm
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
