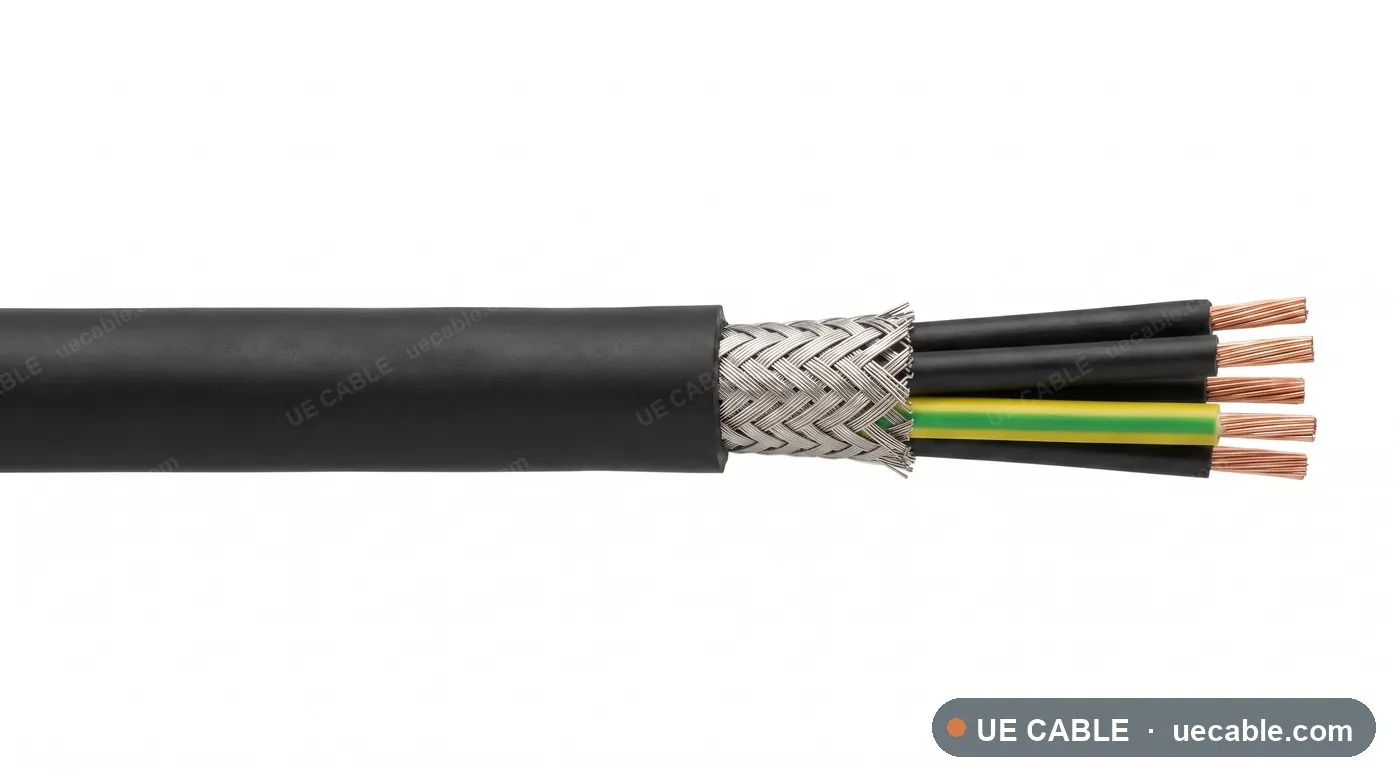

PUR Screened Continuous Flex Control Cable cable construction reference

Screened continuous-flex control cable

PUR Screened Continuous Flex Control Cable

PUR Screened Continuous Flex Control Cable is a continuous-flex cable construction for emc-sensitive drag chains, servo auxiliaries, machine tools, using fine-stranded flexible copper conductor, high-flex pvc or tpe control-core insulation, overall tinned copper braid screen and pur low-adhesion abrasion resistant jacket.

Standard
UL 758
Voltage class
300/500 V
Conductor
Fine-stranded flexible copper conductor
Insulation / jacket
PUR low-adhesion abrasion resistant jacket
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

PUR Screened Continuous Flex Control Cable is a continuous-flex cable construction for emc-sensitive drag chains, servo auxiliaries, machine tools, using fine-stranded flexible copper conductor, high-flex pvc or tpe control-core insulation, overall tinned copper braid screen and pur low-adhesion abrasion resistant jacket.

  • EMC-sensitive drag chains
  • Servo auxiliaries
  • Machine tools
  • Robotic cells

Cable Construction

  • Fine-stranded flexible copper conductor
  • High-flex PVC or TPE control-core insulation
  • Optimized short lay length for repeated bending
  • Overall tinned copper braid screen
  • PUR low-adhesion abrasion resistant jacket

Specifications

Select a cable size.

Each row below is a complete specification sheet — 42 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

EMC drag-chain duty specification references

Each row is an exact continuous-flex specification reference. Shared conductor class, insulation, screen, jacket, speed, acceleration and cycle guidance are listed above.

  • Motion classEMC drag-chain duty
  • Cable useScreened control circuits
  • Cycle guideUp to 10 million cycles guide
  • Bend radius8 x OD dynamic / 5 x OD fixed
Cable referenceCore designConductor sizeOD guide
PUR screened continuous flex control cable 300/500 V EMC drag-chain duty Screened control circuits 2 core 0.5 mm²2 core0.5 mm²11.0 mm
PUR screened continuous flex control cable 300/500 V EMC drag-chain duty Screened control circuits 2 core 0.75 mm²2 core0.75 mm²11.3 mm
PUR screened continuous flex control cable 300/500 V EMC drag-chain duty Screened control circuits 2 core 1.0 mm²2 core1.0 mm²11.6 mm
PUR screened continuous flex control cable 300/500 V EMC drag-chain duty Screened control circuits 2 core 1.5 mm²2 core1.5 mm²12.1 mm
PUR screened continuous flex control cable 300/500 V EMC drag-chain duty Screened control circuits 2 core 2.5 mm²2 core2.5 mm²12.9 mm
PUR screened continuous flex control cable 300/500 V EMC drag-chain duty Screened control circuits 2 core 4 mm²2 core4 mm²13.9 mm
PUR screened continuous flex control cable 300/500 V EMC drag-chain duty Screened control circuits 3 core 0.5 mm²3 core0.5 mm²11.5 mm
PUR screened continuous flex control cable 300/500 V EMC drag-chain duty Screened control circuits 3 core 0.75 mm²3 core0.75 mm²11.8 mm
PUR screened continuous flex control cable 300/500 V EMC drag-chain duty Screened control circuits 3 core 1.0 mm²3 core1.0 mm²12.1 mm
PUR screened continuous flex control cable 300/500 V EMC drag-chain duty Screened control circuits 3 core 1.5 mm²3 core1.5 mm²12.6 mm
PUR screened continuous flex control cable 300/500 V EMC drag-chain duty Screened control circuits 3 core 2.5 mm²3 core2.5 mm²13.4 mm
PUR screened continuous flex control cable 300/500 V EMC drag-chain duty Screened control circuits 3 core 4 mm²3 core4 mm²14.4 mm
PUR screened continuous flex control cable 300/500 V EMC drag-chain duty Screened control circuits 4 core 0.5 mm²4 core0.5 mm²11.9 mm
PUR screened continuous flex control cable 300/500 V EMC drag-chain duty Screened control circuits 4 core 0.75 mm²4 core0.75 mm²12.2 mm
PUR screened continuous flex control cable 300/500 V EMC drag-chain duty Screened control circuits 4 core 1.0 mm²4 core1.0 mm²12.6 mm
PUR screened continuous flex control cable 300/500 V EMC drag-chain duty Screened control circuits 4 core 1.5 mm²4 core1.5 mm²13.1 mm
PUR screened continuous flex control cable 300/500 V EMC drag-chain duty Screened control circuits 4 core 2.5 mm²4 core2.5 mm²13.9 mm
PUR screened continuous flex control cable 300/500 V EMC drag-chain duty Screened control circuits 4 core 4 mm²4 core4 mm²14.8 mm
PUR screened continuous flex control cable 300/500 V EMC drag-chain duty Screened control circuits 5 core 0.5 mm²5 core0.5 mm²12.3 mm
PUR screened continuous flex control cable 300/500 V EMC drag-chain duty Screened control circuits 5 core 0.75 mm²5 core0.75 mm²12.6 mm
PUR screened continuous flex control cable 300/500 V EMC drag-chain duty Screened control circuits 5 core 1.0 mm²5 core1.0 mm²12.9 mm
PUR screened continuous flex control cable 300/500 V EMC drag-chain duty Screened control circuits 5 core 1.5 mm²5 core1.5 mm²13.4 mm
PUR screened continuous flex control cable 300/500 V EMC drag-chain duty Screened control circuits 5 core 2.5 mm²5 core2.5 mm²14.2 mm
PUR screened continuous flex control cable 300/500 V EMC drag-chain duty Screened control circuits 5 core 4 mm²5 core4 mm²15.2 mm
PUR screened continuous flex control cable 300/500 V EMC drag-chain duty Screened control circuits 7 core 0.5 mm²7 core0.5 mm²12.9 mm
PUR screened continuous flex control cable 300/500 V EMC drag-chain duty Screened control circuits 7 core 0.75 mm²7 core0.75 mm²13.2 mm
PUR screened continuous flex control cable 300/500 V EMC drag-chain duty Screened control circuits 7 core 1.0 mm²7 core1.0 mm²13.6 mm
PUR screened continuous flex control cable 300/500 V EMC drag-chain duty Screened control circuits 7 core 1.5 mm²7 core1.5 mm²14.1 mm
PUR screened continuous flex control cable 300/500 V EMC drag-chain duty Screened control circuits 7 core 2.5 mm²7 core2.5 mm²14.9 mm
PUR screened continuous flex control cable 300/500 V EMC drag-chain duty Screened control circuits 7 core 4 mm²7 core4 mm²15.8 mm
PUR screened continuous flex control cable 300/500 V EMC drag-chain duty Screened control circuits 12 core 0.5 mm²12 core0.5 mm²14.2 mm
PUR screened continuous flex control cable 300/500 V EMC drag-chain duty Screened control circuits 12 core 0.75 mm²12 core0.75 mm²14.5 mm
PUR screened continuous flex control cable 300/500 V EMC drag-chain duty Screened control circuits 12 core 1.0 mm²12 core1.0 mm²14.8 mm
PUR screened continuous flex control cable 300/500 V EMC drag-chain duty Screened control circuits 12 core 1.5 mm²12 core1.5 mm²15.3 mm
PUR screened continuous flex control cable 300/500 V EMC drag-chain duty Screened control circuits 12 core 2.5 mm²12 core2.5 mm²16.1 mm
PUR screened continuous flex control cable 300/500 V EMC drag-chain duty Screened control circuits 12 core 4 mm²12 core4 mm²17.1 mm
PUR screened continuous flex control cable 300/500 V EMC drag-chain duty Screened control circuits 18 core 0.5 mm²18 core0.5 mm²15.4 mm
PUR screened continuous flex control cable 300/500 V EMC drag-chain duty Screened control circuits 18 core 0.75 mm²18 core0.75 mm²15.7 mm
PUR screened continuous flex control cable 300/500 V EMC drag-chain duty Screened control circuits 18 core 1.0 mm²18 core1.0 mm²16.0 mm
PUR screened continuous flex control cable 300/500 V EMC drag-chain duty Screened control circuits 18 core 1.5 mm²18 core1.5 mm²16.5 mm
PUR screened continuous flex control cable 300/500 V EMC drag-chain duty Screened control circuits 18 core 2.5 mm²18 core2.5 mm²17.3 mm
PUR screened continuous flex control cable 300/500 V EMC drag-chain duty Screened control circuits 18 core 4 mm²18 core4 mm²18.3 mm
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.

Request Quote →
