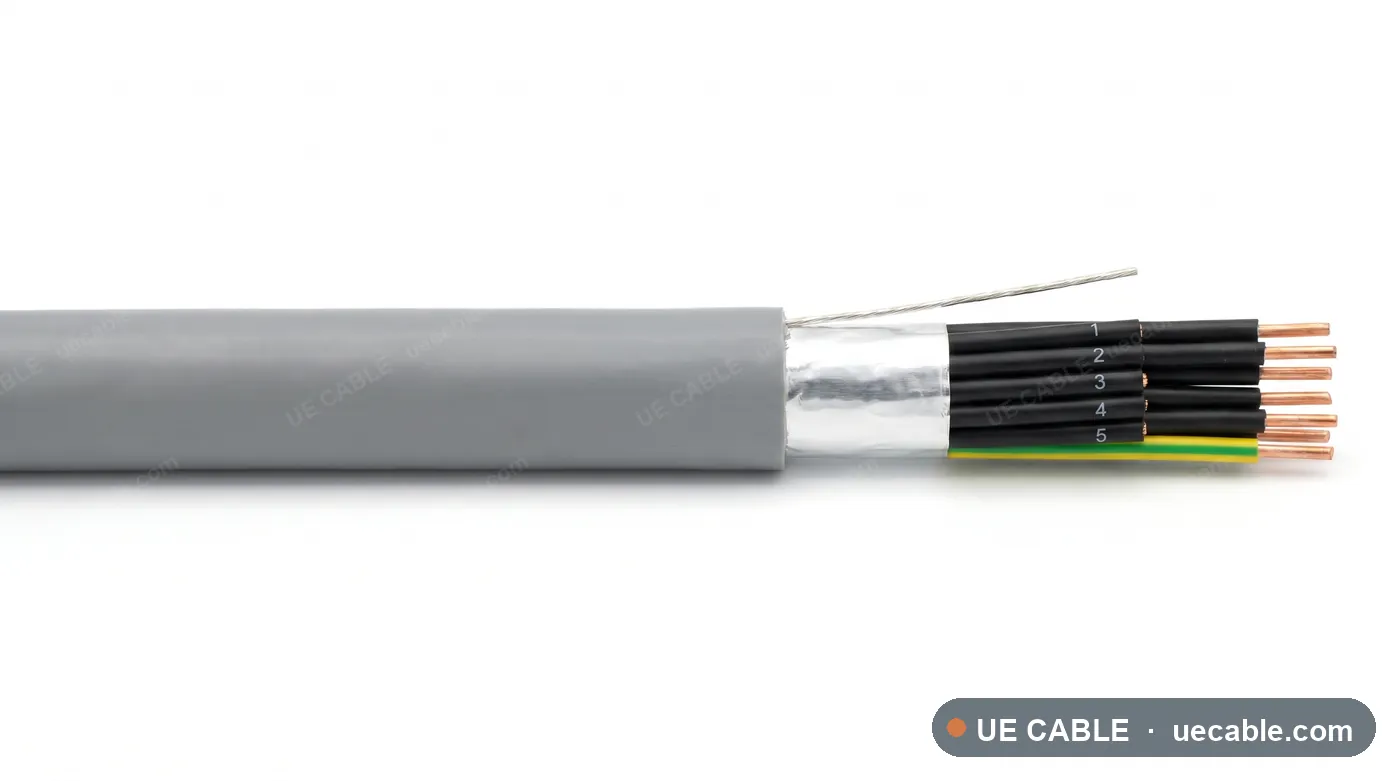

Continuous Flex PUR Track Control Cable cable construction reference

Drag-chain flexible control cable

Continuous Flex PUR Track Control Cable

Continuous Flex PUR Track Control Cable is a flexible industrial control cable construction for drag chains, industrial robots, automation plants, using class 5 flexible copper conductor, high-flex pvc, tpe or halogen-free core insulation, optional tinned copper braid screen for emc routes and cut-resistant pur sheath.

Standard
UL 758
Voltage class
300/500 V
Conductor
Class 5 flexible copper conductor
Insulation / jacket
Cut-resistant PUR sheath
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

Continuous Flex PUR Track Control Cable is a flexible industrial control cable construction for drag chains, industrial robots, automation plants, using class 5 flexible copper conductor, high-flex pvc, tpe or halogen-free core insulation, optional tinned copper braid screen for emc routes and cut-resistant pur sheath.

  • Drag chains
  • Industrial robots
  • Automation plants
  • Multi-shift moving equipment

Cable Construction

  • Class 5 flexible copper conductor
  • High-flex PVC, TPE or halogen-free core insulation
  • Numbered or color-coded core identification
  • Optional tinned copper braid screen for EMC routes
  • Cut-resistant PUR sheath

Specifications

Select a cable size.

Each row below is a complete specification sheet — 36 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Continuous-flex track duty specification references

Each row is an exact flexible-control cable specification sheet. Shared conductor class, insulation, screen/protection, sheath and motion duty are listed above.

  • Service classContinuous-flex track duty
  • EMC / protectionOptional tinned copper braid screen for EMC routes
Cable referenceCore designConductor sizeMax DC resistance at 20 °COD guide
Continuous flex PUR track control cable 300/500 V Continuous-flex track duty 3 core 0.5 mm²3 core0.5 mm²39.0 Ω/km11.6 mm
Continuous flex PUR track control cable 300/500 V Continuous-flex track duty 3 core 0.75 mm²3 core0.75 mm²26.0 Ω/km12.0 mm
Continuous flex PUR track control cable 300/500 V Continuous-flex track duty 3 core 1.0 mm²3 core1.0 mm²19.5 Ω/km12.3 mm
Continuous flex PUR track control cable 300/500 V Continuous-flex track duty 3 core 1.5 mm²3 core1.5 mm²13.3 Ω/km12.7 mm
Continuous flex PUR track control cable 300/500 V Continuous-flex track duty 3 core 2.5 mm²3 core2.5 mm²7.98 Ω/km13.5 mm
Continuous flex PUR track control cable 300/500 V Continuous-flex track duty 3 core 4 mm²3 core4 mm²4.95 Ω/km14.4 mm
Continuous flex PUR track control cable 300/500 V Continuous-flex track duty 4 core 0.5 mm²4 core0.5 mm²39.0 Ω/km12.0 mm
Continuous flex PUR track control cable 300/500 V Continuous-flex track duty 4 core 0.75 mm²4 core0.75 mm²26.0 Ω/km12.4 mm
Continuous flex PUR track control cable 300/500 V Continuous-flex track duty 4 core 1.0 mm²4 core1.0 mm²19.5 Ω/km12.7 mm
Continuous flex PUR track control cable 300/500 V Continuous-flex track duty 4 core 1.5 mm²4 core1.5 mm²13.3 Ω/km13.1 mm
Continuous flex PUR track control cable 300/500 V Continuous-flex track duty 4 core 2.5 mm²4 core2.5 mm²7.98 Ω/km13.9 mm
Continuous flex PUR track control cable 300/500 V Continuous-flex track duty 4 core 4 mm²4 core4 mm²4.95 Ω/km14.8 mm
Continuous flex PUR track control cable 300/500 V Continuous-flex track duty 5 core 0.5 mm²5 core0.5 mm²39.0 Ω/km12.4 mm
Continuous flex PUR track control cable 300/500 V Continuous-flex track duty 5 core 0.75 mm²5 core0.75 mm²26.0 Ω/km12.7 mm
Continuous flex PUR track control cable 300/500 V Continuous-flex track duty 5 core 1.0 mm²5 core1.0 mm²19.5 Ω/km13.0 mm
Continuous flex PUR track control cable 300/500 V Continuous-flex track duty 5 core 1.5 mm²5 core1.5 mm²13.3 Ω/km13.5 mm
Continuous flex PUR track control cable 300/500 V Continuous-flex track duty 5 core 2.5 mm²5 core2.5 mm²7.98 Ω/km14.2 mm
Continuous flex PUR track control cable 300/500 V Continuous-flex track duty 5 core 4 mm²5 core4 mm²4.95 Ω/km15.1 mm
Continuous flex PUR track control cable 300/500 V Continuous-flex track duty 7 core 0.5 mm²7 core0.5 mm²39.0 Ω/km13.0 mm
Continuous flex PUR track control cable 300/500 V Continuous-flex track duty 7 core 0.75 mm²7 core0.75 mm²26.0 Ω/km13.3 mm
Continuous flex PUR track control cable 300/500 V Continuous-flex track duty 7 core 1.0 mm²7 core1.0 mm²19.5 Ω/km13.6 mm
Continuous flex PUR track control cable 300/500 V Continuous-flex track duty 7 core 1.5 mm²7 core1.5 mm²13.3 Ω/km14.1 mm
Continuous flex PUR track control cable 300/500 V Continuous-flex track duty 7 core 2.5 mm²7 core2.5 mm²7.98 Ω/km14.8 mm
Continuous flex PUR track control cable 300/500 V Continuous-flex track duty 7 core 4 mm²7 core4 mm²4.95 Ω/km15.7 mm
Continuous flex PUR track control cable 300/500 V Continuous-flex track duty 12 core 0.5 mm²12 core0.5 mm²39.0 Ω/km14.1 mm
Continuous flex PUR track control cable 300/500 V Continuous-flex track duty 12 core 0.75 mm²12 core0.75 mm²26.0 Ω/km14.5 mm
Continuous flex PUR track control cable 300/500 V Continuous-flex track duty 12 core 1.0 mm²12 core1.0 mm²19.5 Ω/km14.8 mm
Continuous flex PUR track control cable 300/500 V Continuous-flex track duty 12 core 1.5 mm²12 core1.5 mm²13.3 Ω/km15.3 mm
Continuous flex PUR track control cable 300/500 V Continuous-flex track duty 12 core 2.5 mm²12 core2.5 mm²7.98 Ω/km16.0 mm
Continuous flex PUR track control cable 300/500 V Continuous-flex track duty 12 core 4 mm²12 core4 mm²4.95 Ω/km16.9 mm
Continuous flex PUR track control cable 300/500 V Continuous-flex track duty 18 core 0.5 mm²18 core0.5 mm²39.0 Ω/km15.3 mm
Continuous flex PUR track control cable 300/500 V Continuous-flex track duty 18 core 0.75 mm²18 core0.75 mm²26.0 Ω/km15.6 mm
Continuous flex PUR track control cable 300/500 V Continuous-flex track duty 18 core 1.0 mm²18 core1.0 mm²19.5 Ω/km15.9 mm
Continuous flex PUR track control cable 300/500 V Continuous-flex track duty 18 core 1.5 mm²18 core1.5 mm²13.3 Ω/km16.4 mm
Continuous flex PUR track control cable 300/500 V Continuous-flex track duty 18 core 2.5 mm²18 core2.5 mm²7.98 Ω/km17.2 mm
Continuous flex PUR track control cable 300/500 V Continuous-flex track duty 18 core 4 mm²18 core4 mm²4.95 Ω/km18.1 mm
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
