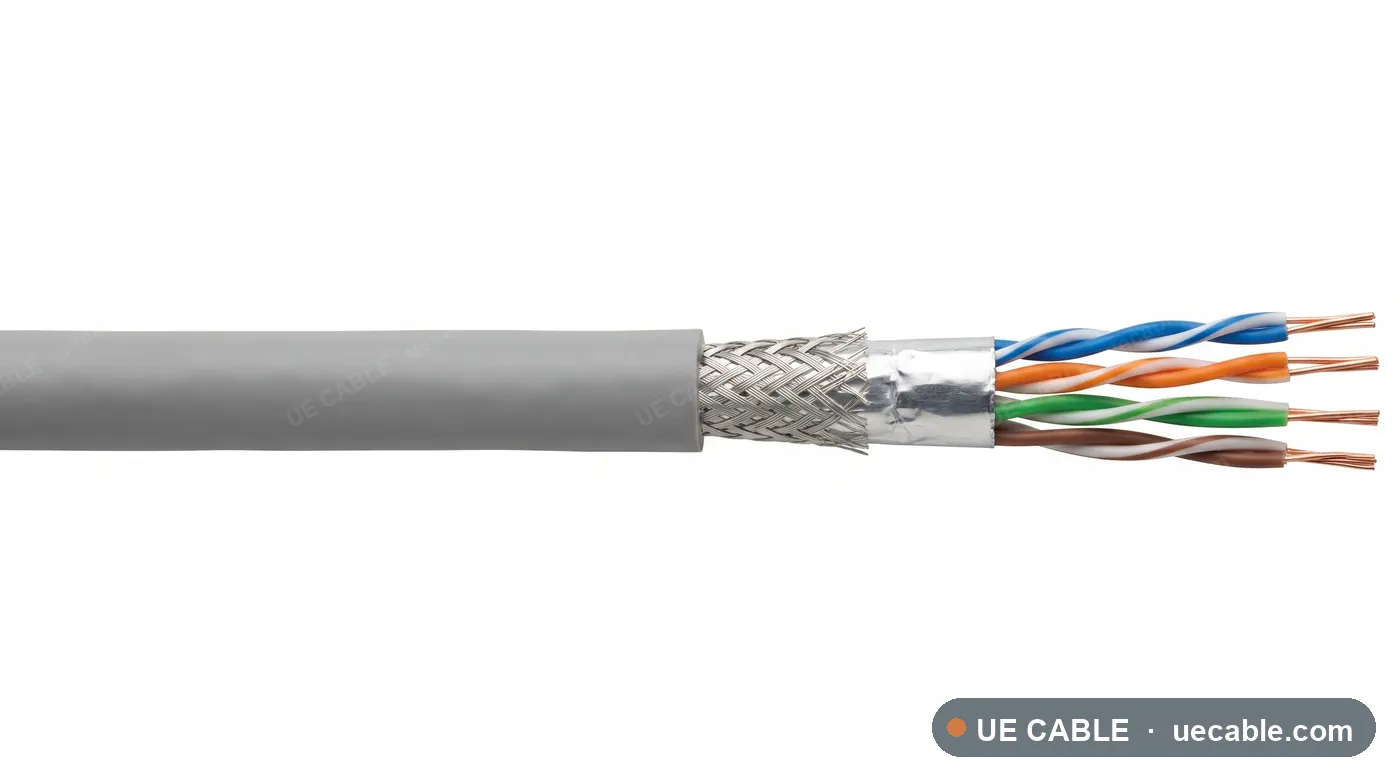

Automotive Ethernet Shielded Twisted Pair Cable cable construction reference

Vehicle Ethernet cable

Automotive Ethernet Shielded Twisted Pair Cable

Automotive Ethernet Shielded Twisted Pair Cable is an automotive cable construction for automotive ethernet and ADAS data links, using fine stranded copper high-speed data conductors with PVC sheath (TPU/PUR on request).

Standard
ISO 14572
Voltage class
Low-voltage vehicle data circuits
Temperature class
-40 °C to +105 °C or specified class
Conductor
Fine stranded copper high-speed data conductors
Insulation / jacket
PVC sheath (TPU/PUR on request)
Cross-section range
0.13 mm² to 1.0 mm²
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

Automotive Ethernet Shielded Twisted Pair Cable is an automotive cable construction for automotive ethernet and ADAS data links, using fine stranded copper high-speed data conductors with PVC sheath (TPU/PUR on request).

  • Automotive Ethernet
  • ADAS data links
  • Camera and sensor networks
  • Vehicle domain controllers

Cable Construction

  • Fine stranded copper high-speed data conductors
  • Automotive stranded conductor with cross-section selected by circuit current and harness routing
  • Foam PE (impedance controlled) insulation or outer layer
  • Foil or braid screen for high-speed data transmission
  • PVC sheath (TPU/PUR on request) color and marking according to harness drawing

Specifications

Select a cable size.

Each row below is a complete specification sheet — 6 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Cable Specification Sheets

  • Transmission reference100 Ω Ethernet pair
  • Shielding / pair protectionFoil or braid screen for high-speed data transmission
  • JacketPVC sheath (TPU/PUR on request)
  • Temperature class-40 °C to +105 °C or specified class
Cable referencePair / core designConductor sizeConductor construction
Automotive Ethernet STP Cable 1P x 26 AWG1P x 26 AWG26 AWG / 0.13 mm²Fine stranded Cu
Automotive Ethernet STP Cable 1P x 24 AWG1P x 24 AWG24 AWG / 0.22 mm²7/0.20
Automotive Ethernet STP Cable 1P x 22 AWG1P x 22 AWG22 AWG / 0.35 mm²12/0.20
Automotive Ethernet STP Cable 1P x 20 AWG1P x 20 AWG20 AWG / 0.5 mm²16/0.20
Automotive Ethernet STP Cable 1P x 18 AWG1P x 18 AWG18 AWG / 0.75 mm²24/0.20
Automotive Ethernet STP Cable 1P x 17 AWG1P x 17 AWG17 AWG / 1.0 mm²32/0.20
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.

Request Quote →
